1. Simple Introduction

The series manual (or electric) structure, According to user requirements and configuration V-shaped, U-shaped pull any knife 2mm gap among, Hydraulic equipped with 2, A notch forming, Operation is extremely simple and reliable, Processing of the V-notch and U-notch (2mm). To meet the GB / T229-2007 《metal Charpy pendulum impact test》 and ASTM, EZ3, ISO148 and other international standards requirements; Due to a molding of broaching principle, The processing identity excellent guarantees notch being processed 100 percent qualified.

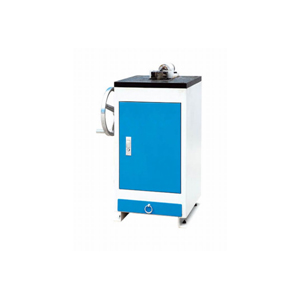

The series, currently divided into: Manual impact notch broaching (single-pole), Impact notch electric broaching (pole). And impact notch broaching hydraulic motor (pole) and other types.
The standard used: Meet GB / P229-2007 《metal Charpy pendulum impact test method》If you change the structure and replacement of important related parts, You can meet the American standard, European standard ASTM, E23-02a, EN10045, ISO148, ISO083 and other international standards.
Belongs Material: Metal Material
Industry: The series is special equipment required broaching metallurgy, boiler and pressure vessel, vehicle, construction machinery manufacturing and scientific research departments of physics and chemistry laboratories.
Test Type: Impact

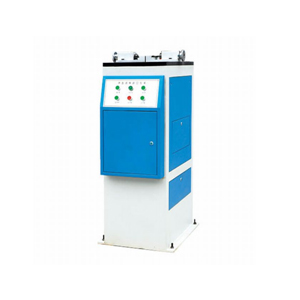

Hydraulic broaching machine, Main motor driven rotary screw nut up and down motion, Drive is equipped with U, V type broaches rail, Liter and cutting knife to complete the process. Lubricating motor rotation, An Fuyu coaxial drive gear pump is turning, Pump out the oil after the throttle into the rail, Lubricate, while broach cutting edge cooling
